Configuring Harbor

Introduction

Harbor is an open-source container image registry that secures images with policies and role-based access control, ensures images are scanned and free from vulnerabilities, and signs images as trusted.

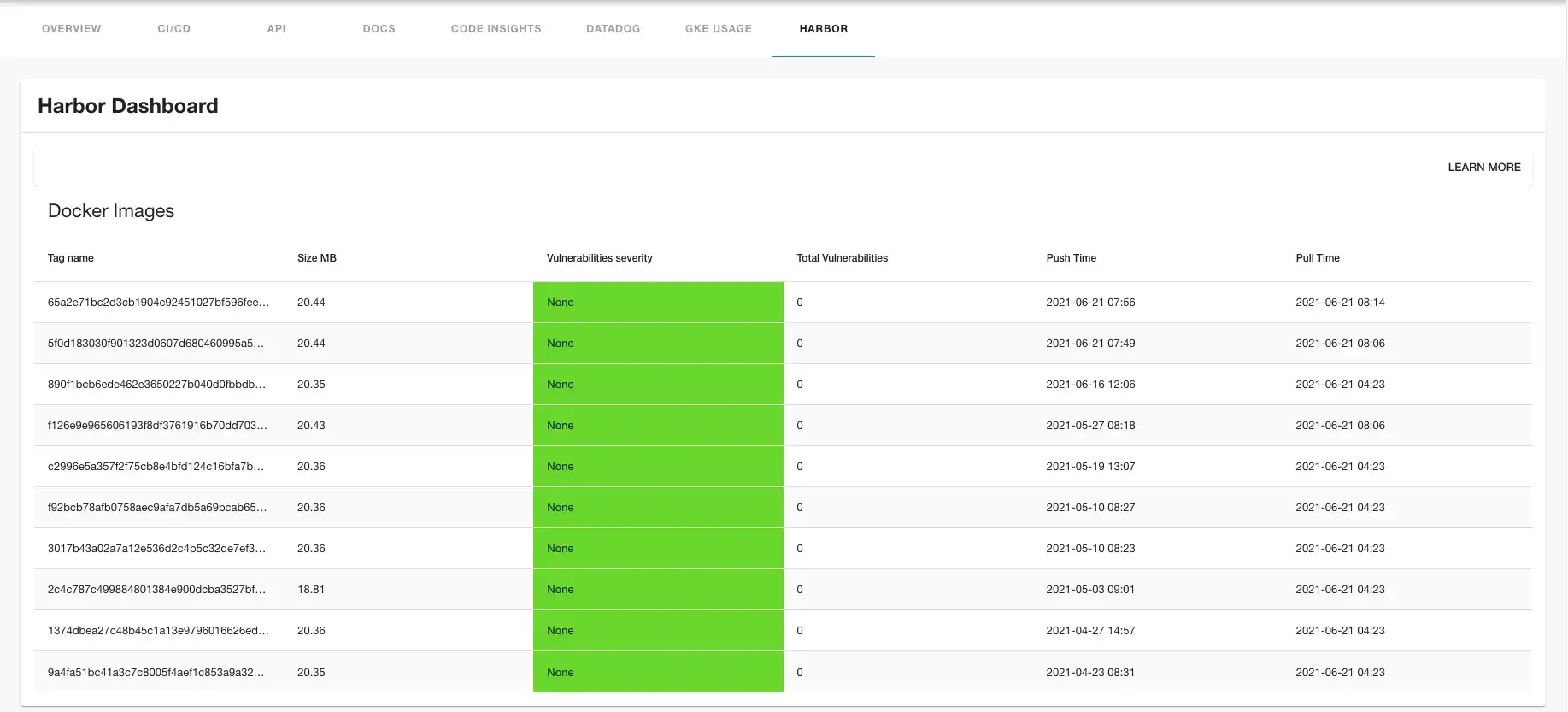

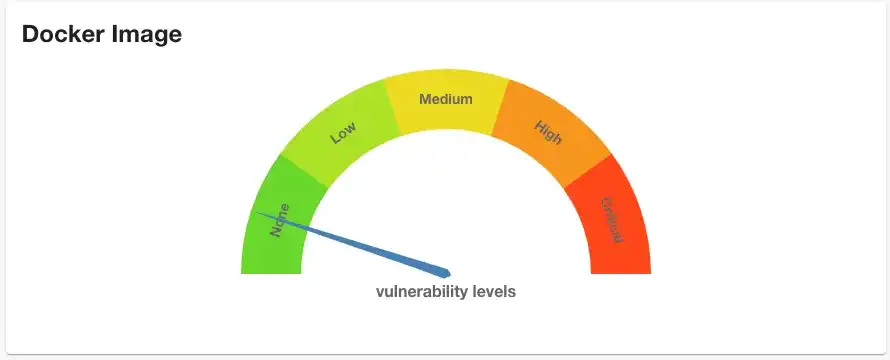

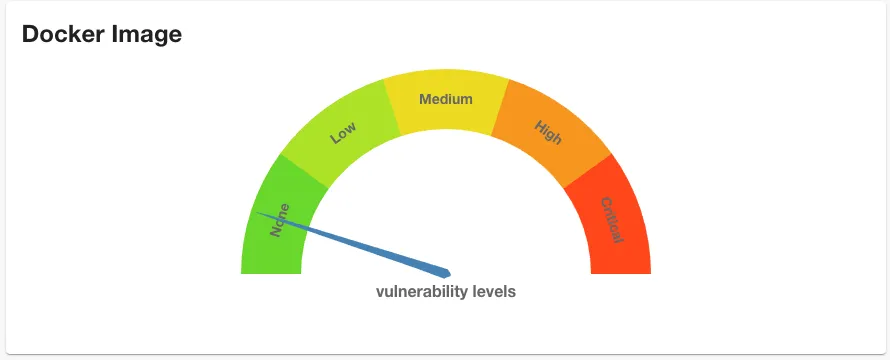

The Harbor plugin allows you to view information about your Docker images stored in Harbor directly within Backstage. This plugin provides both a dedicated Harbor tab and a widget that can be displayed on entity overview pages, giving you quick access to container image details, vulnerabilities, and other Harbor-specific information.

At a Glance

Harbor Entity Configuration

Step 1: Add the Harbor Tab and Widget

The Harbor plugin is available as both a tab and widget on entity pages in Roadie.

Step 2: Annotate your entities

Add the following annotation to entities to link Harbor repositories to the entity:

metadata:
  annotations:
    goharbor.io/repository-slug: [PROJECT]/[REPOSITORY]

The value for goharbor.io/repository-slug should be in the format project/repository where:

• project is your Harbor project name
• repository is your repository name within that project

For example:

metadata:
  annotations:
    goharbor.io/repository-slug: my-project/my-repository

Connection Configuration Steps

Step 1: Configure Harbor Connection

Visit https://<tenant-name>.roadie.so/administration/harbor to configure your Harbor connection.

You need to configure the following:

• Base URL: The URL of your Harbor instance (e.g., https://harbor.yourdomain.com)

For secrets you need to set

• HARBOR_USERNAME: Harbor username with appropriate permissions
• HARBOR_PASSWORD: Harbor password or access token

Troubleshooting

Harbor information not appearing

1. Verify that the goharbor.io/repository-slug annotation is correctly set on your entity
2. Ensure the project and repository names match exactly with those in Harbor
3. Check that your Harbor connection configuration is correct
4. Verify that the Harbor user has appropriate permissions to access the specified project and repository

Authentication issues

1. Visit https://<tenant-name>.roadie.so/administration/harbor and confirm that the Harbor username and password are correct
2. Ensure the Harbor user has the necessary permissions (at minimum, read access to the project)
3. Check if the Harbor instance requires specific authentication methods
