How to Create an Authenticated Proxy

Introduction

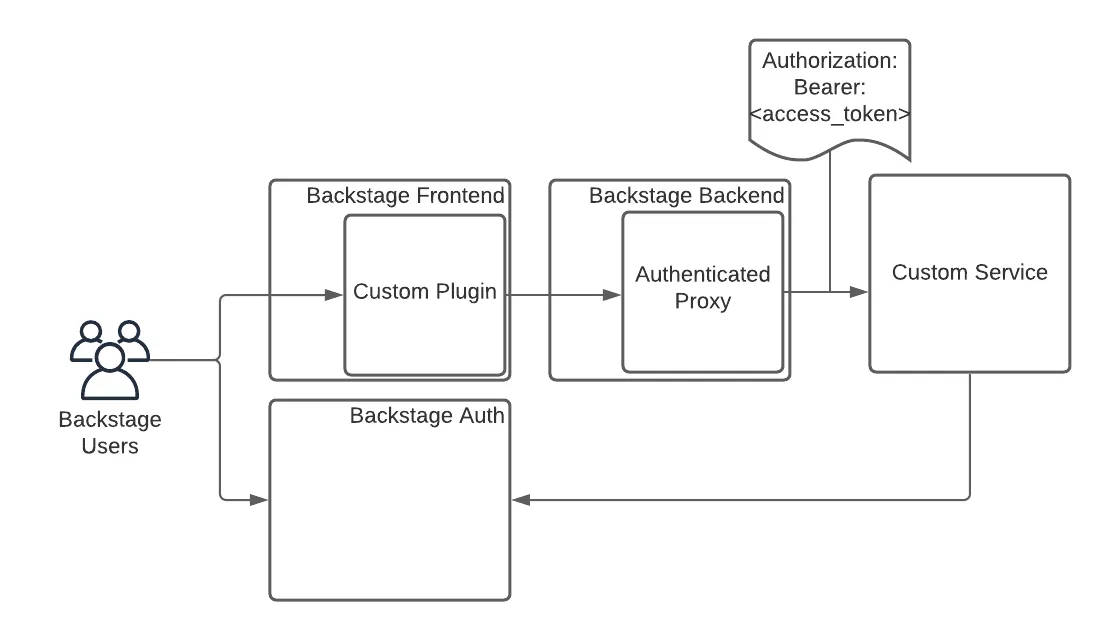

Roadie provides a custom proxy service that can be configured to pass an access token for authentication by the service it is configured to send to.

This gives a custom plugin a way to interact with your own service. That service can authenticate the incoming requests from Roadie.

Setup

Step 1. Configure the Proxy

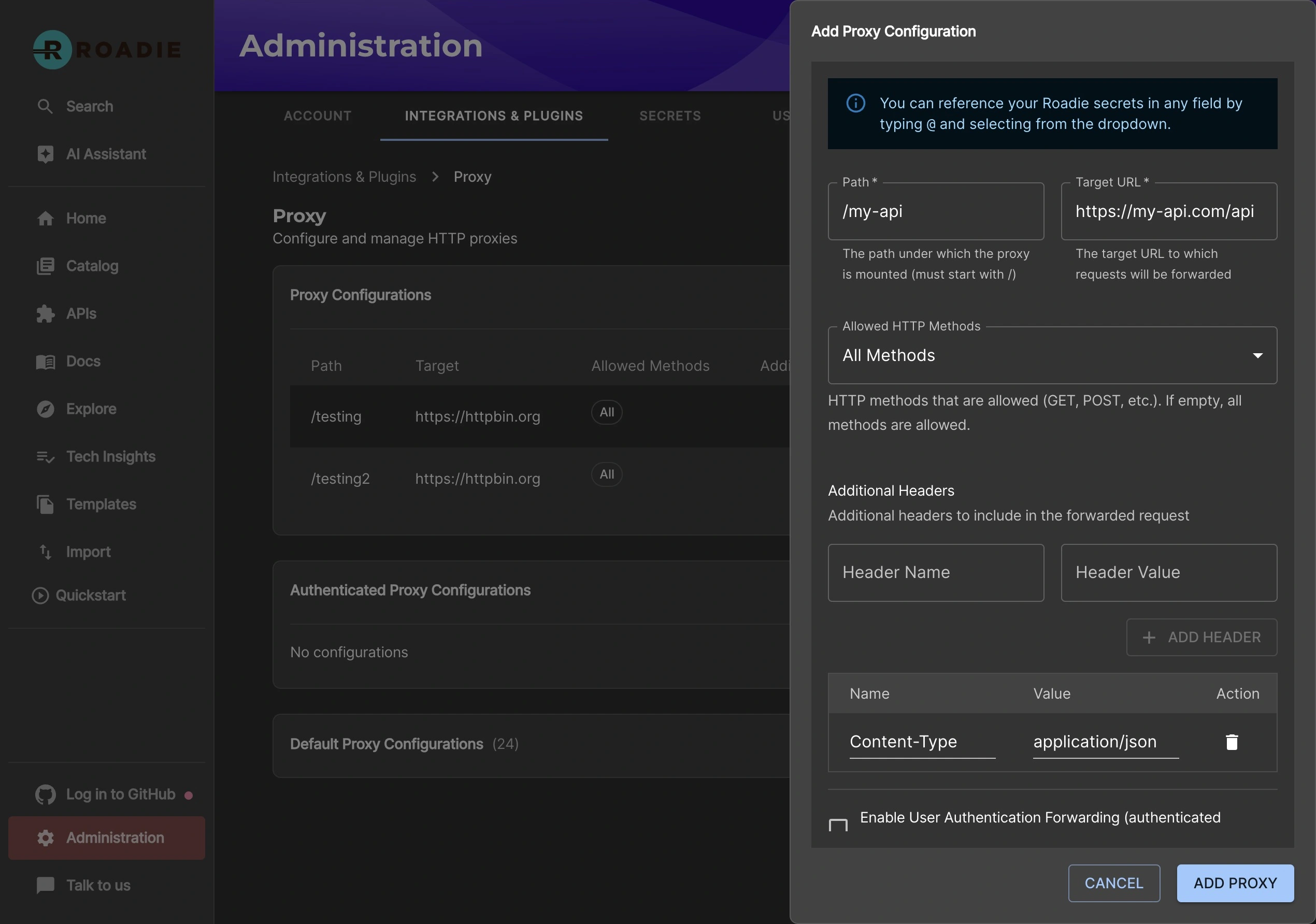

You can navigate to /administration/settings/authenticatedProxy. Click add item to add a new proxy.

Enter a Path (e.g. /my-api) and a target API (e.g. https://my-api.com/api).

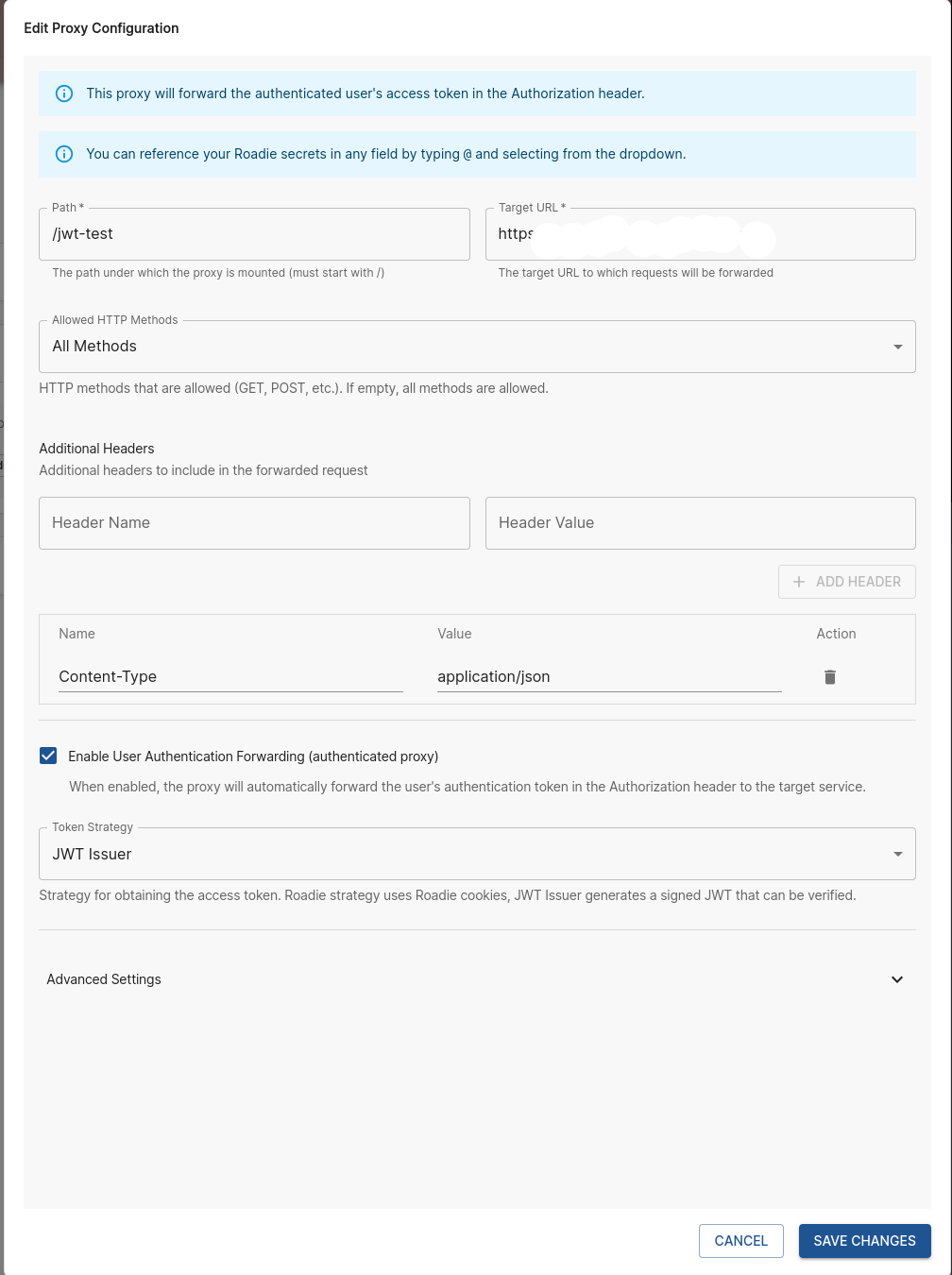

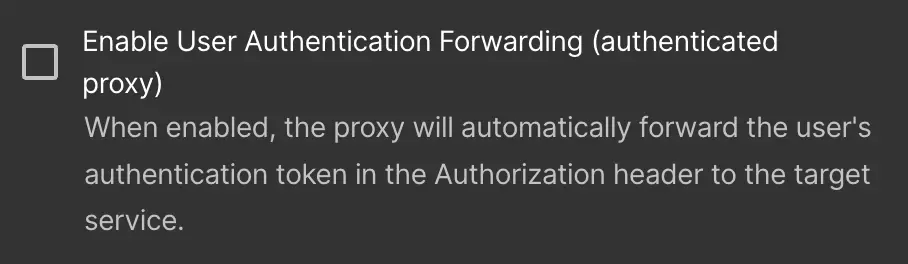

Click the "Enable User Authentication Forwarding" checkbox to create an authenticated proxy.

Click save and Apply and Restart and wait for the restart. It can take up to about two minutes for the change to be applied.

Step 2 Calling the API

You can call this API from the Roadie window context in a browser via a Custom Roadie plugin:

fetch('/api/authenticated-proxy/my-api');

Step 3 Authenticate the Request

The API configured in the Authenticated proxy target will receive a token in the authorization header. Roadie supports two methods for validating this token:

Method 1: JWT Validation using JWKS (Recommended)

The request includes a signed JWT that can be validated using the public keys exposed at your tenant's JWKS endpoint:

https://<tenant>.roadie.so/.well-known/jwks.json

Replace <tenant> with your Roadie tenant name.

Most programming languages have libraries that can automatically fetch and validate JWTs using a JWKS endpoint:

// Node.js example using jsonwebtoken and jwks-rsa
const jwt = require('jsonwebtoken');
const jwksClient = require('jwks-rsa');

const client = jwksClient({
  jwksUri: 'https://<tenant>.roadie.so/.well-known/jwks.json'
});

function getKey(header, callback) {
  client.getSigningKey(header.kid, function (err, key) {
    const signingKey = key.publicKey || key.rsaPublicKey;
    callback(null, signingKey);
  });
}

// Extract token from Authorization header
const token = req.headers.authorization.replace('Bearer ', '');

// Verify the JWT
jwt.verify(token, getKey, {algorithms: ['RS256']}, function (err, decoded) {
  if (err) {
    return res.status(401).send('Unauthorized');
  }
  // Token is valid, decoded contains the user information
  console.log(decoded.sub); // User entity
});

Once validated, the decoded JWT will contain claims about the authenticated user:

{
  "sub": "user:default/my-user-entity",
  "aud": "https://<tenant>.roadie.so",
  "exp": 1765980447,
  "iat": 1765979547,
  "iss": "https://roadie.io"
}

Method 2: Token Introspection via Userinfo Endpoint

Alternatively, you can send the token to the Roadie Authentication system to retrieve information about the logged in Roadie user:

curl --request GET \
  --url 'https://auth.roadie.io/userinfo' \
  --header 'Authorization: Bearer {ACCESS_TOKEN}' \
  --header 'Content-Type: application/json'

This will return the identity as follows:

{
  "sub": "248289761003",
  "name": "John Doe",
  ...
  "updated_at": "1556845729"
}
