Track Codecov coverage results

Tracking the code coverage information for catalog entities is crucial in ensuring the software is secure and compliant. It can be difficult to know which components have coverage activated and are meeting minimum standards.

With Roadie’s Tech Insights feature, there’s an easier way. In this tutorial, we’re going to:

1. Automatically scan Components in the Backstage catalog and record which components have Codecov activated, active, and their % of coverage.
2. Create a check that can tell us which software is active and activated.
3. Create a check that can tell us which software is meeting minimum code coverage threshold of 80%.

As we go through this process, you’ll learn:

1. How to create Data Sources, Checks and Scorecards with Tech Insights.
2. How to parse files with JSONata in Roadie and extract facts from the Codecov Repository Detail API endpoint.
3. How to detect which catalog entities have code coverage active, activated, and their coverage %.

Let’s get started.

Prerequisite

Code Coverage Tool Proxy Configuration

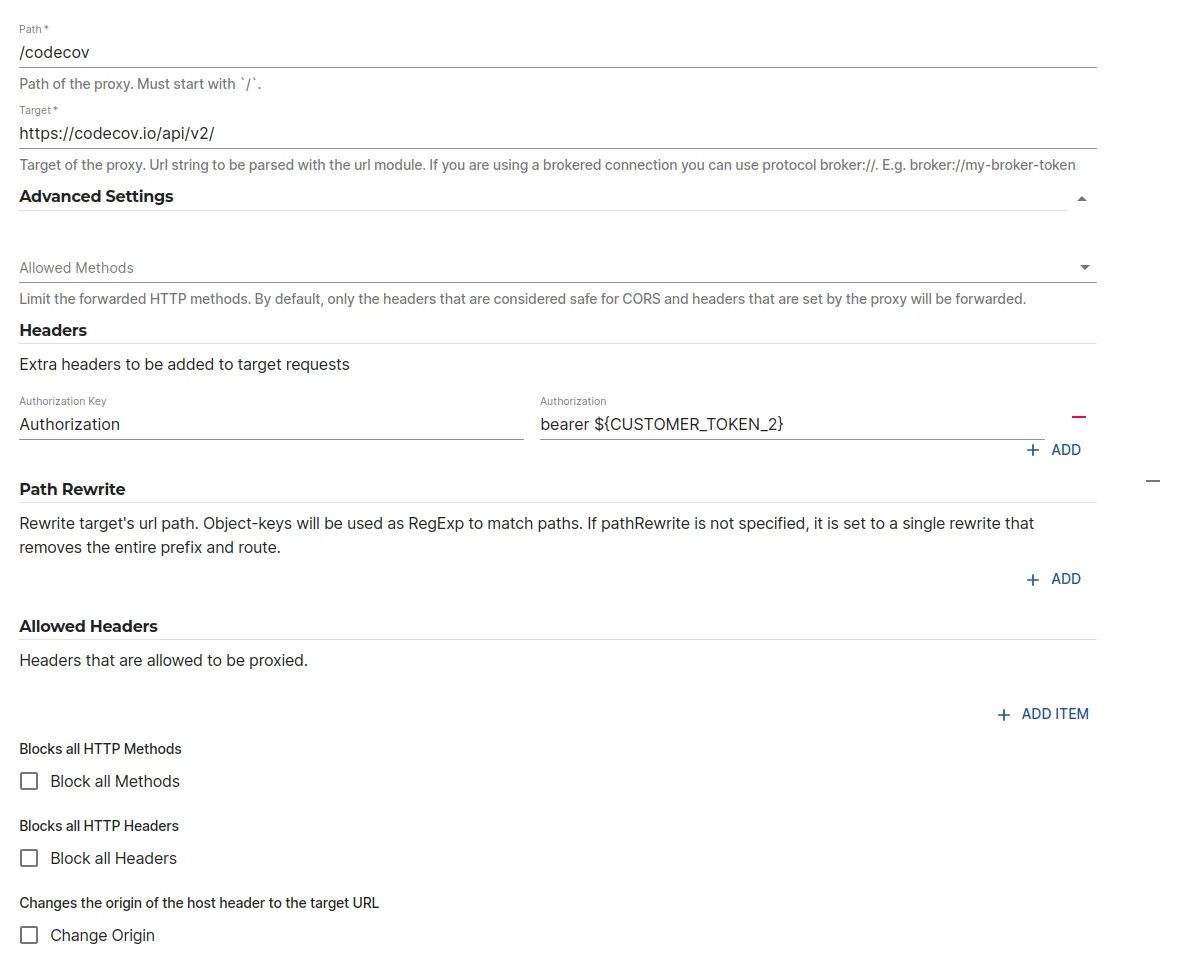

1. A Proxy connection to your code coverage tool of choice must be configured prior to creating the data source to obtain results. In this tutorial, we will be using Codecov.



Record the Codecov Reposotory Coverage

So that we can track our catalog entity code coverage, we must obtain information related to the status (active and activated) and coverage %. We will do this by creating a Data Source to pull the information from Codecov for each entity.

Data Source

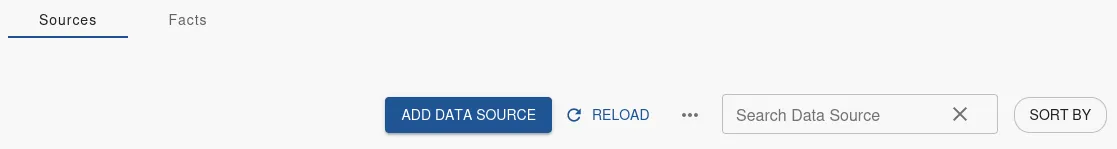

1. Visit Tech Insights, select the Data Sources tab, and press ADD DATA SOURCE.

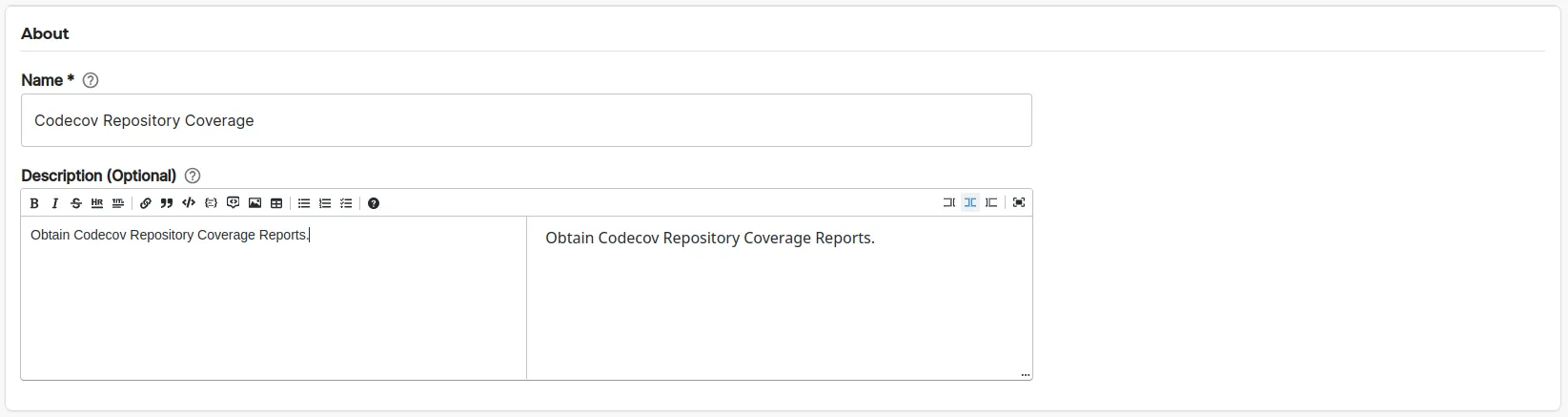

2. Enter a descriptive Name and Description.

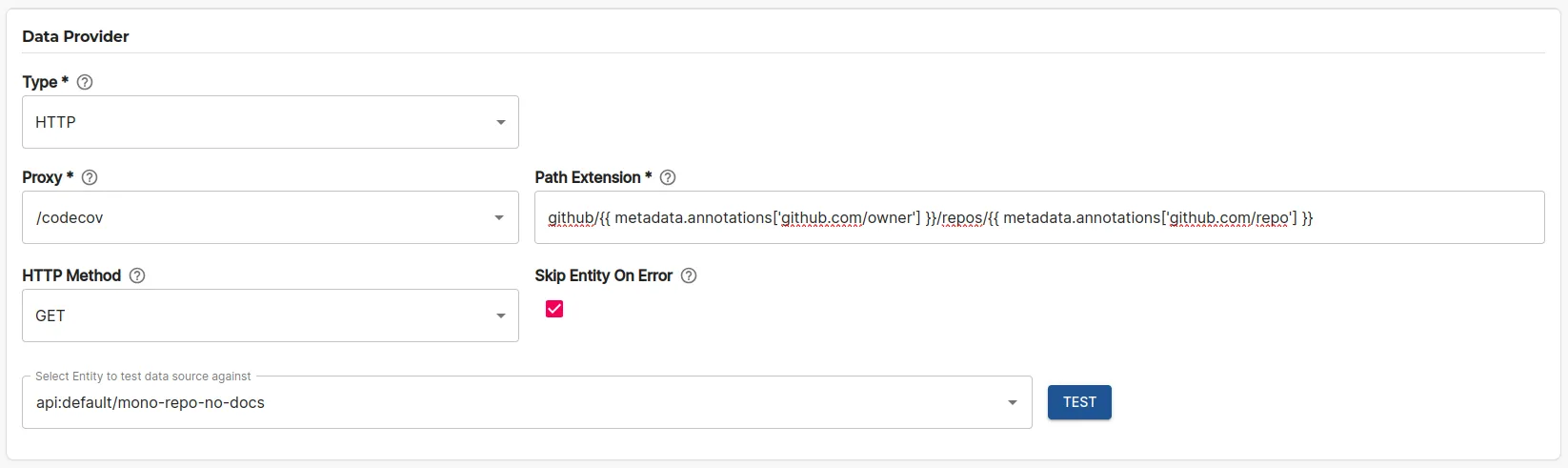

3. Set the Data Provider to:

   Field Name	Value
   Type	HTTP
   Proxy	/codecov
   Path Extension	github/{{ metadata.annotations['github.com/owner'] }}/repos/{{ metadata.annotations['github.com/repo'] }}
   HTTP Method	GET

   Select a value for Select Entity to test data source against and press TEST.

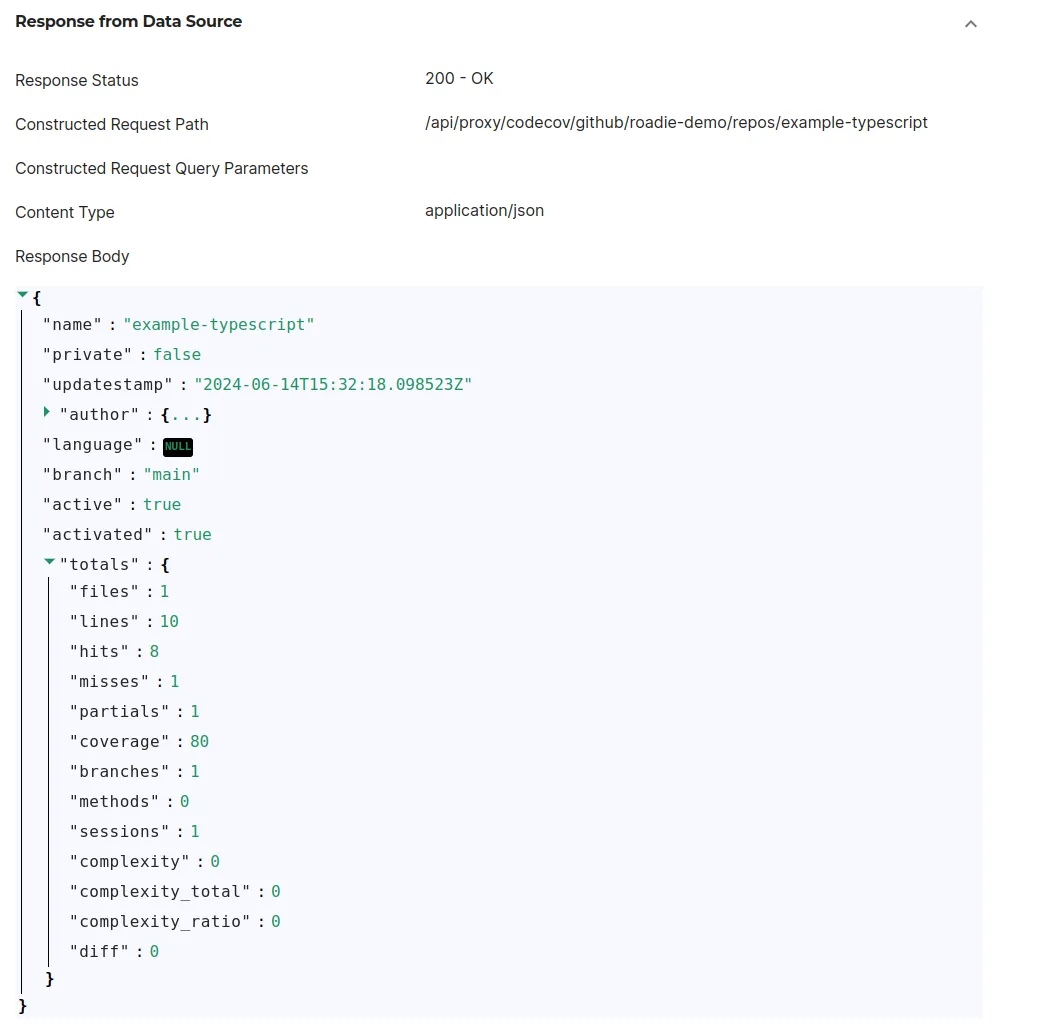

4. Test results are displayed.

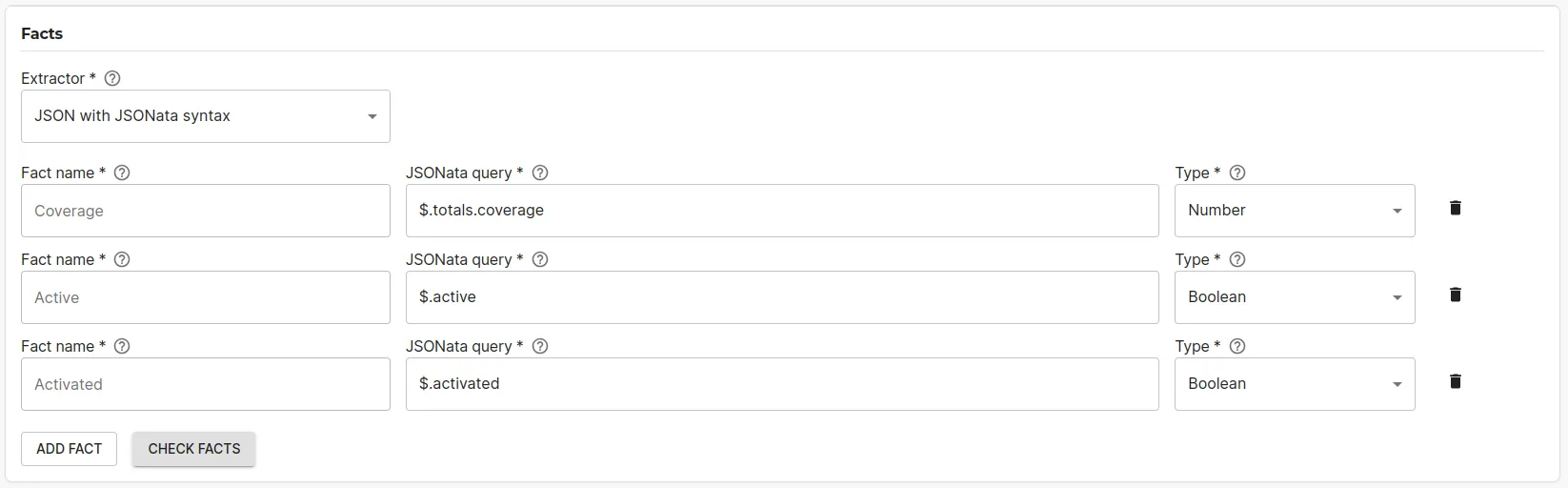

5. Create multiple Facts:

   1. Set Extractor to JSON with JSONata syntax.
   2. Set the first Fact to:

      Field Name	Value
      Fact Name	Coverage
      JSONata query	$.totals.coverage
      Type	Number

   3. Set the second Fact to:

      Field Name	Value
      Fact Name	Active
      JSONata query	$.active
      Type	Boolean

   4. Set the third Fact to:

      Field Name	Value
      Fact Name	Activated
      JSONata query	$.activated
      Type	Boolean

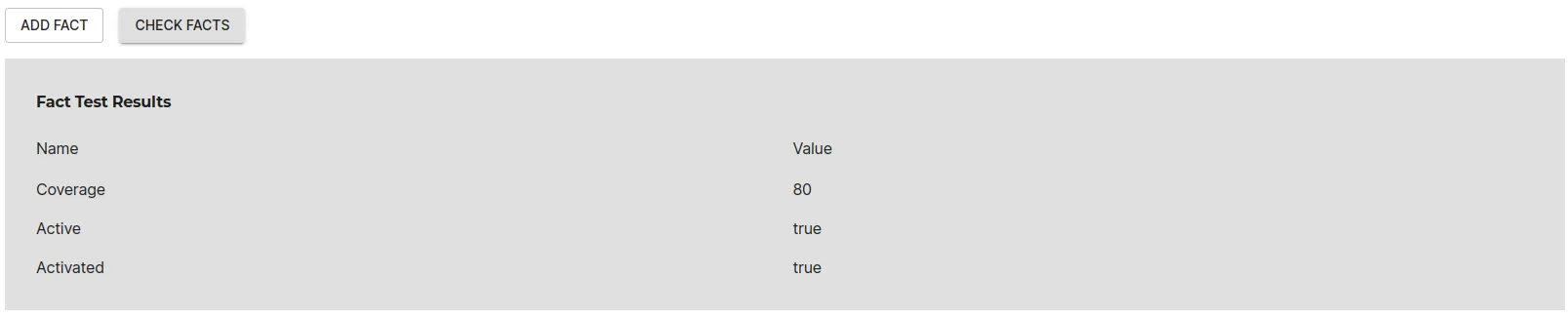

6. Press CHECK FACTS.

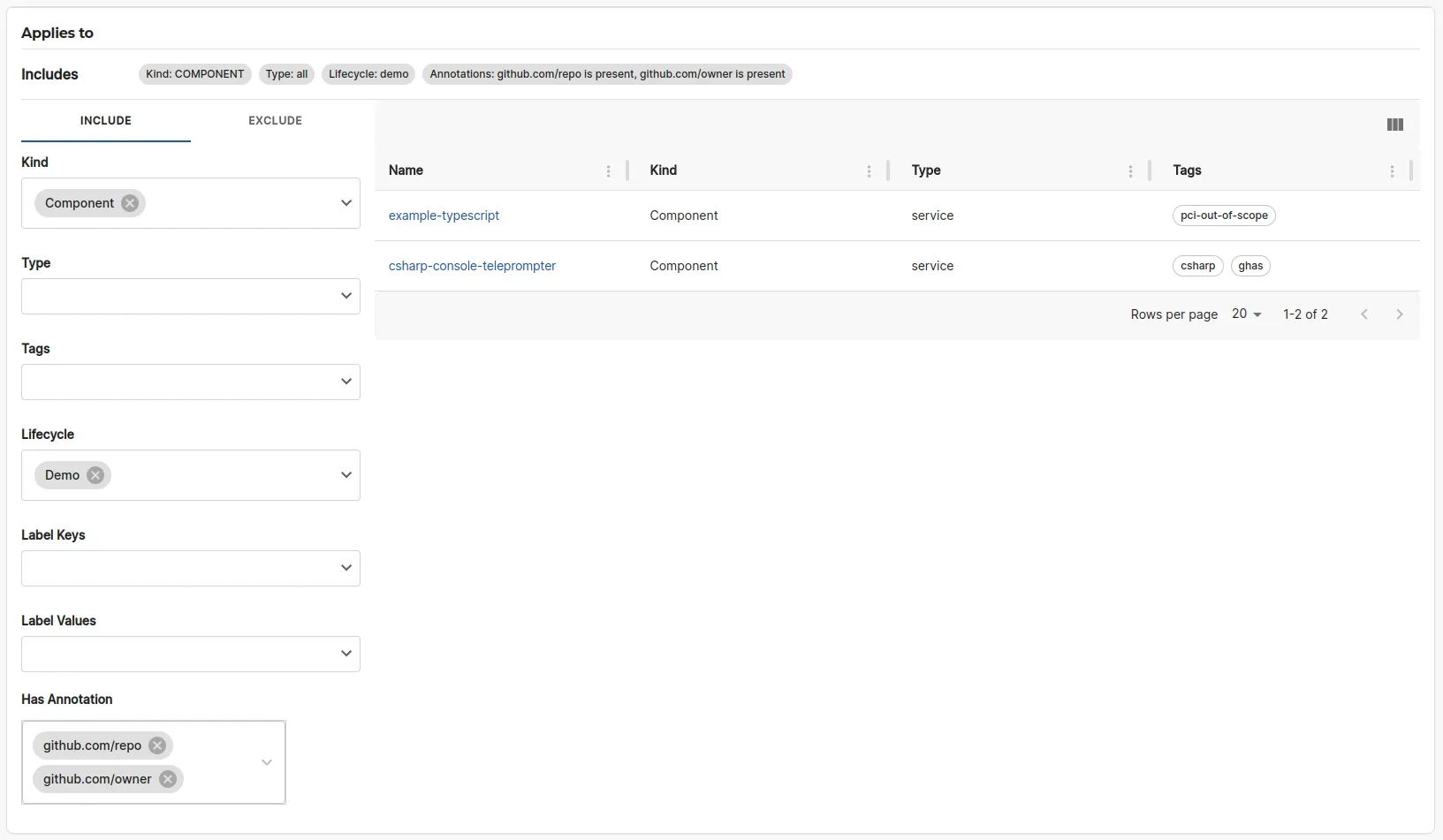

7. Use the Applies to filter to target this data source at some components which you expect to have Node.js. We recommend starting with a highly targeted filter for initial experimentation and iteration. You can widen the filter later to capture more results.



8. Press SAVE.

Create a Check that Shows Code Coverage is Defined

We have a data source providing Active and Activated, let’s create a check to report which entities are defined.

Create a Check

1. Visit Tech Insights, select the Checks tab, and press ADD CHECK.

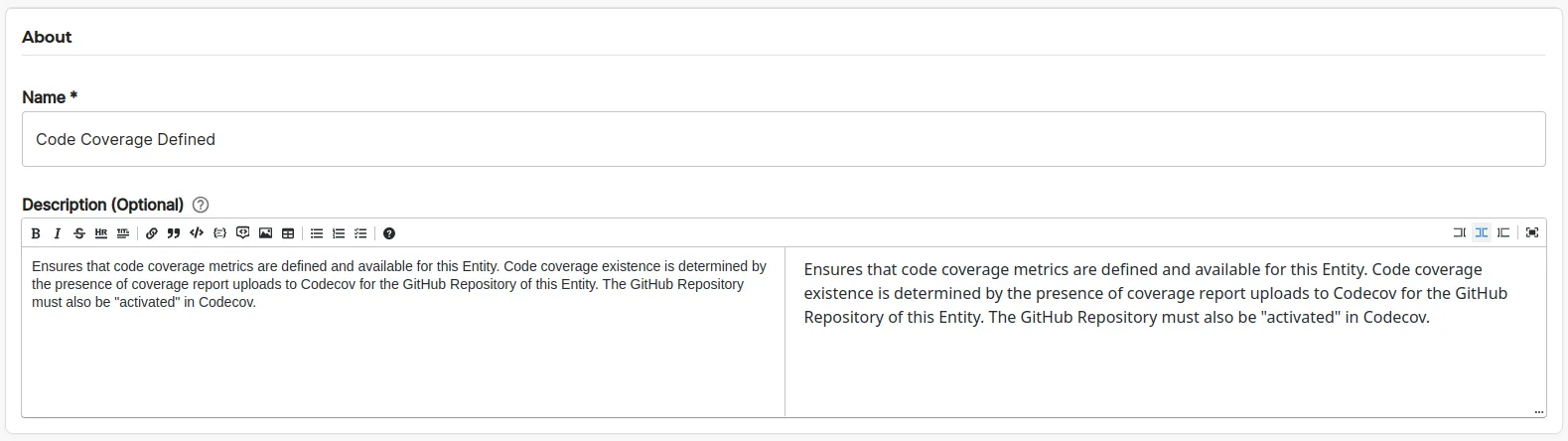

2. Enter a descriptive Name and Description.

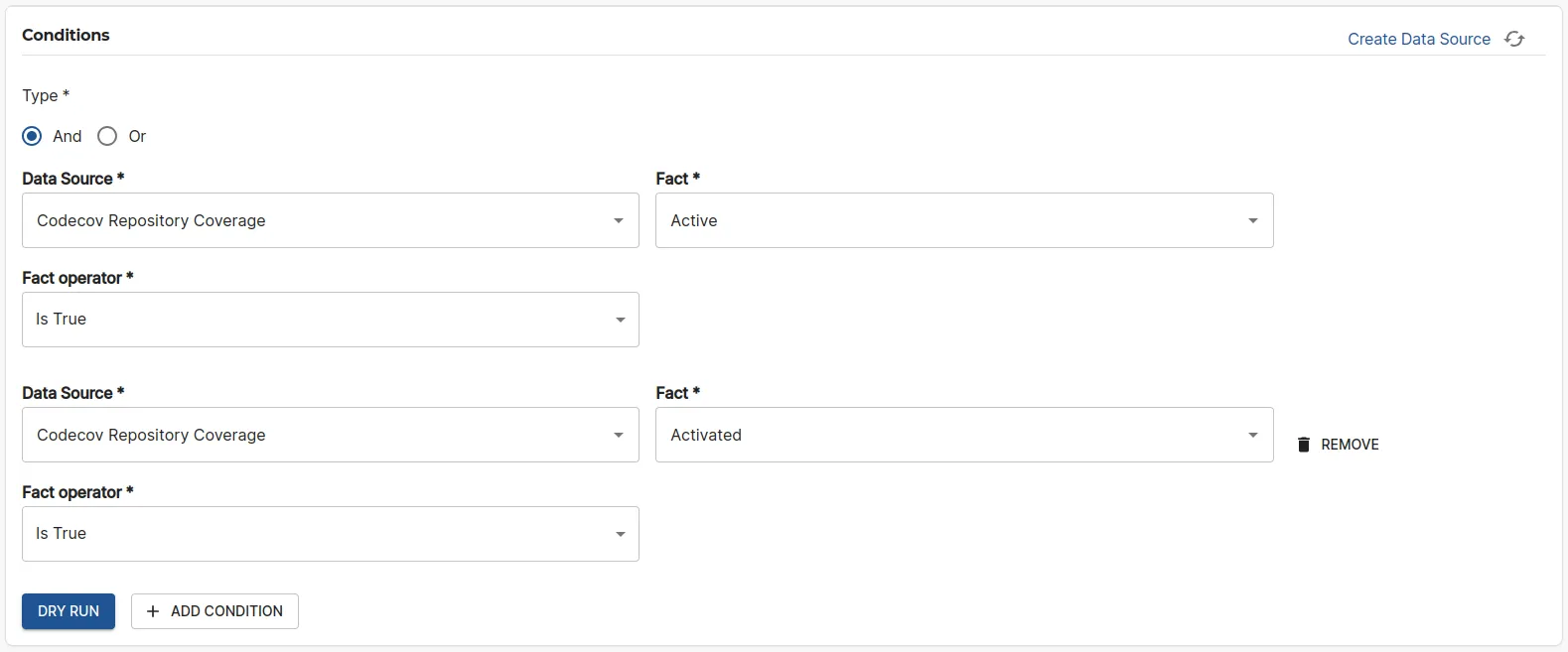

3. Create a check:

   1. Set the first condition to:

      Field Name	Value
      Data Source	Codecov Repository Coverage
      Fact	Active
      Fact operator	Is True

   2. Set the second condition to:

      Field Name	Value
      Data Source	Codecov Repository Coverage
      Fact	Activated
      Fact operator	Is True



4. Press DRY RUN

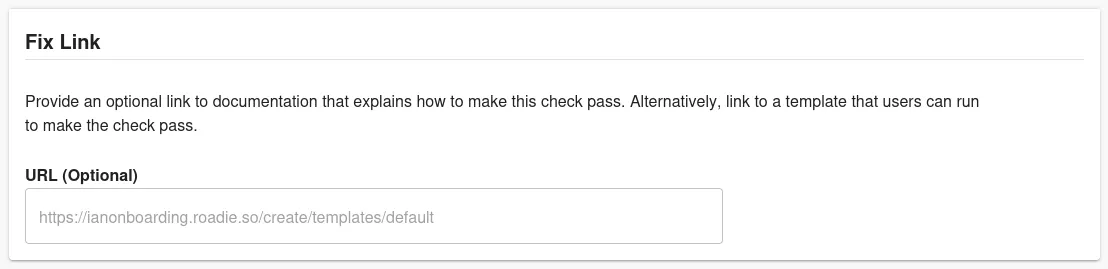

5. (Optional) Add a URL to documentation outlining the steps to resolve the Codecov configuration.



6. Use the Applies to filter to target this data source at some components which you expect to have Code Coverage configured. We recommend starting with a highly targeted filter for initial experimentation and iteration. You can widen the filter later to capture more results.



7. Press SAVE.

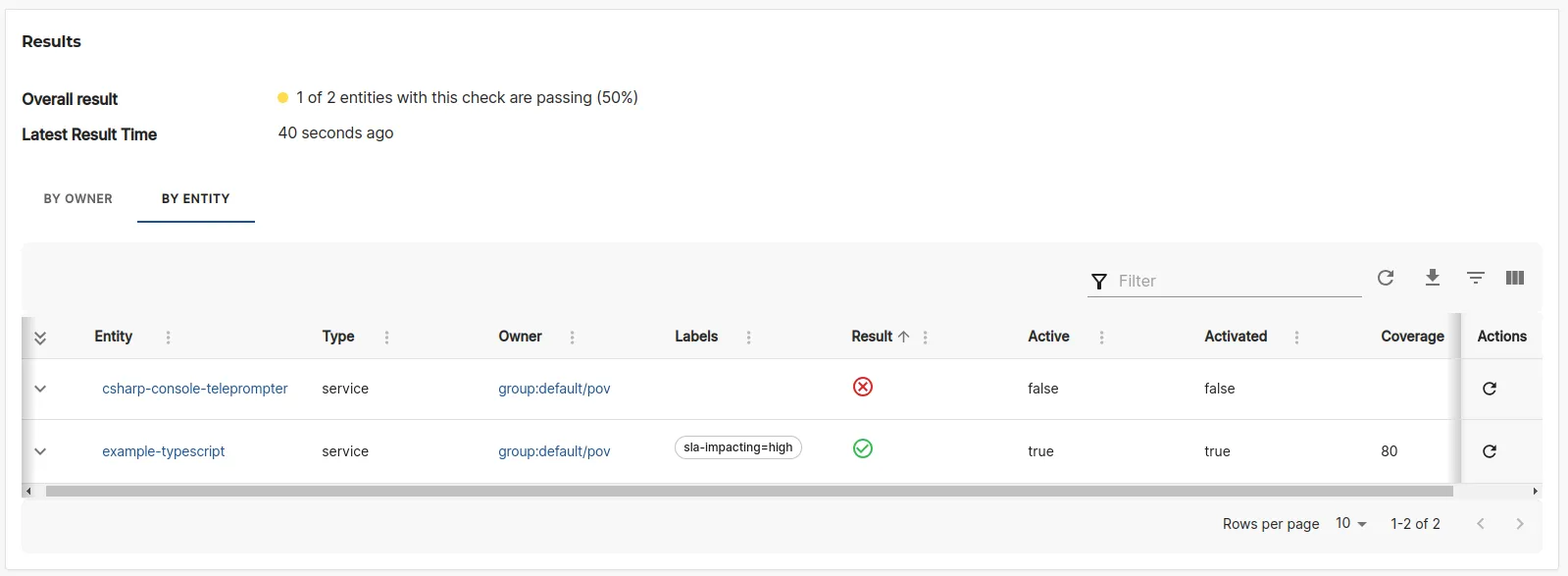

Check Results

The results of this check tell us who we need to reach out to ensure Codecov is configured.

• The csharp-console-teleprompter service fails the checks.

Since we already know the owners of these components, it’s easy to reach out and ask them to configure Codecov for their catalog entity.

Create a Check that shows Minimum Code Coverage Threshold is Met

We have a data source telling us what the coverage is, let’s create a check to ensure minimum coverage is met.

Create a Check

1. Visit Tech Insights, select the Checks tab, and press ADD CHECK.

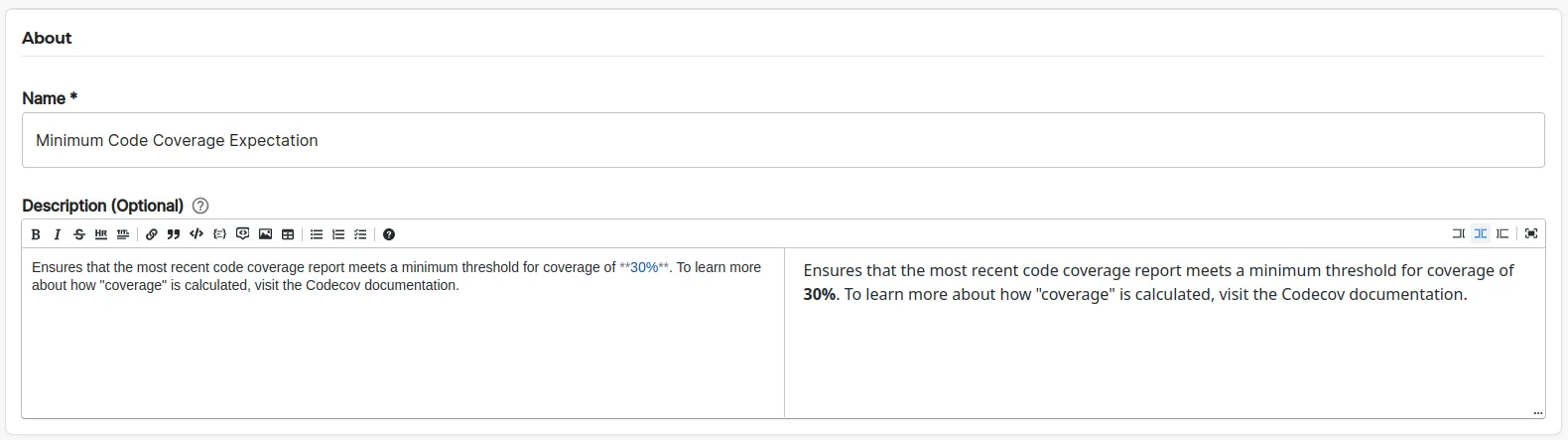

2. Enter a descriptive Name and Description.

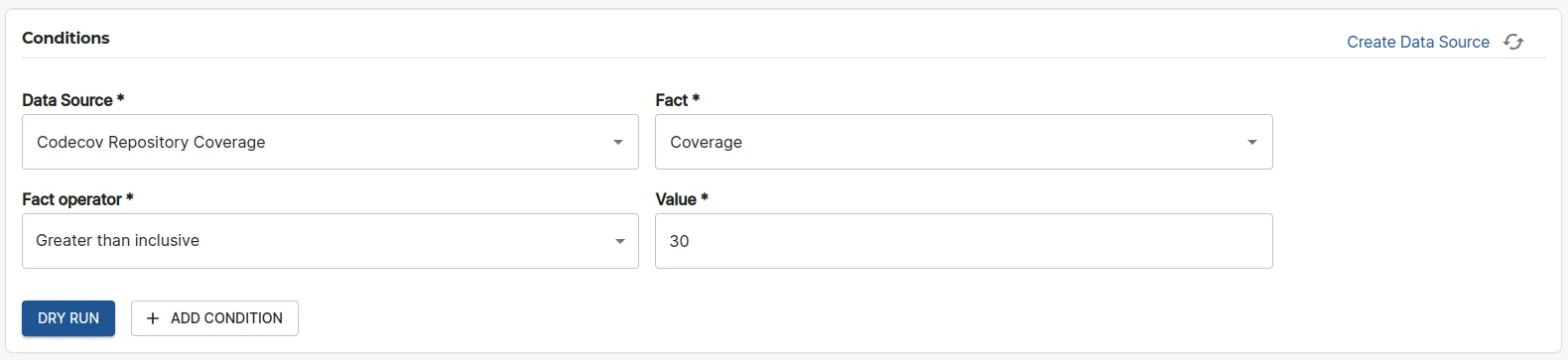

3. Create a check:

   1. Set the first condition to:

      Field Name	Value
      Data Source	Codecov Repository Coverage
      Fact	Coverage
      Fact operator	Greater than inclusive
      Value	80



4. Press DRY RUN

5. (Optional) Add a URL to documentation outlining the steps to resolve the Codecov configuration.



6. Use the Applies to filter to target this data source at some components which you expect to have Code Coverage configured. We recommend starting with a highly targeted filter for initial experimentation and iteration. You can widen the filter later to capture more results.



7. Press SAVE.

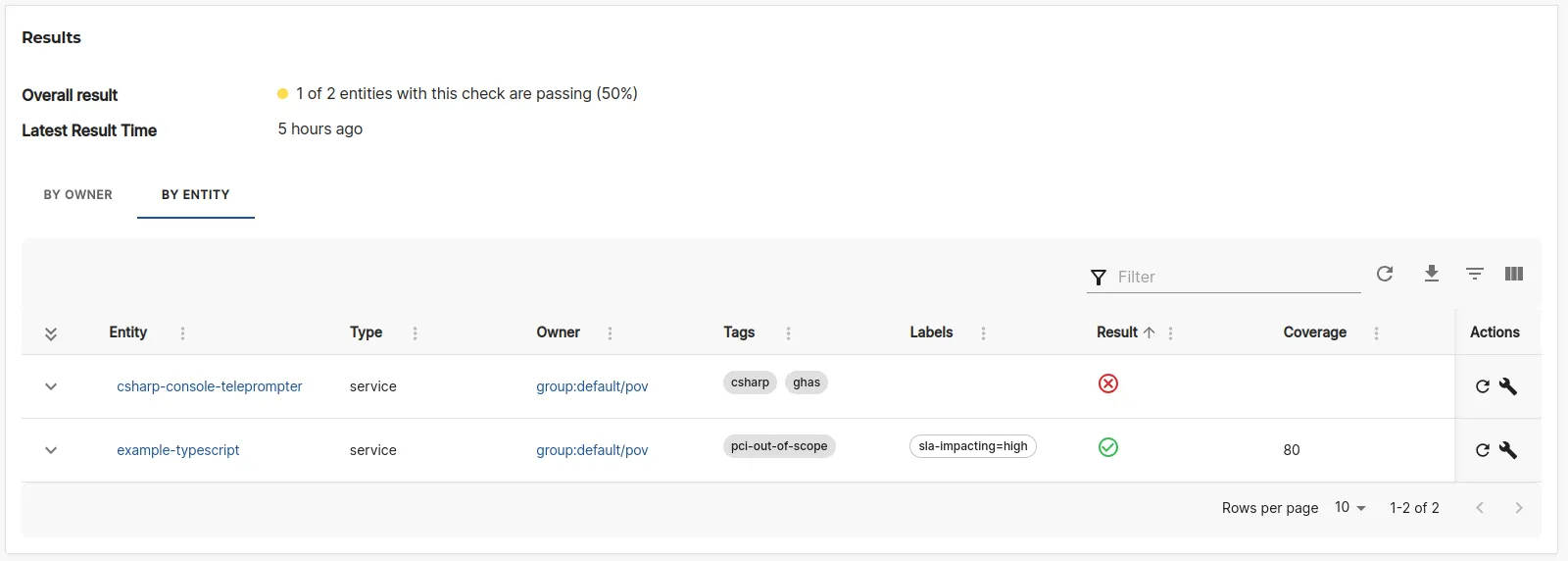

Check Results

The results of this check tell us who we need to reach out to ensure Codecov is configured.

• The csharp-console-teleprompter service fails the checks.

Since we already know the owners of these components, it’s easy to reach out and ask them to configure Codecov for their catalog entity.
