Using TechDocs in Roadie

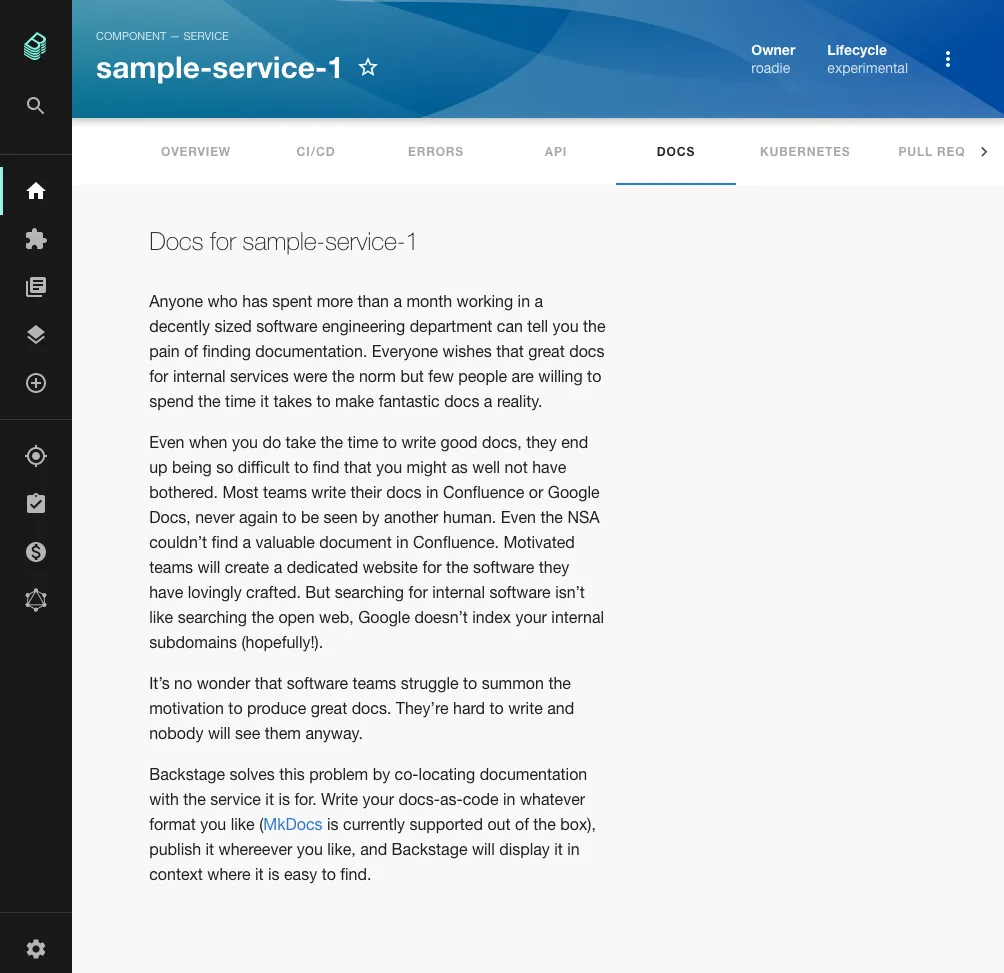

The TechDocs feature of Roadie Backstage allows markdown files written alongside the code of your components to appear in Backstage as styled HTML documentation.

MkDocs Plugins

Under the hood, Backstage uses the popular MkDocs library to render documentation. This library is very feature rich thanks to its extensive range of available plugins.

We currently include the following MkDocs plugins in our build process:

search
mkdocs-monorepo-plugin
admonition - includes side content without significantly interrupting the document flow
toc - generates a Table of Contents for your doc
pymdown - a collection of the following extensions:
- caret: Inserts superscripts and place text in an tag.
- critic: Critic Markup allows you to track changes.
- details: Collapsible elements with details and summary tags.
- emoji: Adds emojis.
- superfences: Splits up your docs with fences to make them more readable.
- inlinehilite: Highlights inline code.
- magiclink: Linkifies URL and email links without having to wrap them in Markdown syntax. Also, shortens repository issue, pull request, and commit links automatically for popular code hosting providers.
- mark: Marks words easily.
- smartsymbols: Inserts commonly used Unicode characters via simple ASCII representations like: =/= → ≠.
- highlight: Configures the syntax highlighting of SuperFences and InlineHilite. Also passes standard Markdown indented code blocks through the syntax highlighter.
- extra: Extra is just like Python Markdown’s Extra package except it uses PyMdown Extensions to substitute similar extensions.
- tabbed: Allows for tabbed Markdown content.
- tasklist: Lists with check boxes.
- tilde: Adds support for inserting subscripts and adds an easy way to place text in a tag.
markdown_inline_graphviz - replaces inline Graphviz definitions with inline SVGs or PNGs
plantuml_markdown - inserts a PlantUML diagram as an image in your document
mdx_truly_sane_lists - adds custom indents for nested lists, better linebreaks and paragraphs between lists.
mkdocs-awesome-pages-plugin - simplifies configuring page titles and their order
mkdocs-schema-reader - converts JSON Schema files into markdown
mkdocs-minify-plugin - minifies HTML, JS or CSS files
mkdocs-glightbox - displays images, iframes, inline content and videos
markdown-inline-mermaid - generates diagrams from markdown-like text.
mkdocs-kroki-plugin - A diagram library supporting multiple different diagram formats. See https://kroki.io/ for more information.
mkdocs-print-site-plugin - Allows you to render a whole doc with all pages so that you can export it to PDF or HTML via the browser.

NB: To use these plugins you must include them in your mkdocs.yml file like so:

Generic Markdown plugins are listed under markdown_extensions: while MkDocs plugins are under plugins:

...
plugins:
  - techdocs-core
  - glightbox
markdown_extensions:
  - markdown_inline_mermaid

Note that the techdocs-core plugin packages many of the above plugins already.

Theme and Styling

Backstage uses an opinionated theme based on material-mkdocs.

NB: Some styles will always be overridden regardless of the mkdocs-material plugin theme settings and this can cause unexpected behavior for those who override the theme setting in a mkdocs.yaml file.

Testing and previewing your documentation

You can generate / serve your docs locally to view what they would look like when they are deployed to Roadie.

To generate the docs to the site directory of the project you can run the following command:

npx @techdocs/cli generate --docker-image roadiehq/techdocs

To start a local server at port 3000 containing the generated docs, you can run the following command:

npx @techdocs/cli serve --docker-image roadiehq/techdocs

NB: We have seen some issues generating and serving plantuml and mermaid diagrams sometimes on M1 Macbooks due to unresolved bugs in open source dependencies. Please reach out to us anyway if you run into any difficulties.

By default, the structure of the docs pages will mirror that of the file system. You can also explicitly describe your page structure using the nav object in your mkdocs.yaml. Both approaches are described here.

Similarly, MkDocs will determine a title for your document according to these rules.

By default MkDocs will create a navigation menu where a menu item that has child pages will not link to the index page for that parent item. To fix this we have added a MkDocs plugin called section-index. To enable this plugin you can add it to the plugins list in the mkdocs.yaml file.

plugins:
  - section-index
  - ...

Exporting and printing

You can print docs from Roadie using the inbuilt browser print options, such as printing to PDF (File -> Print for most browsers).

Requirements

You must have Light Theme enabled when doing the export (/administration/account -> Appearance) and the Table of Contents turned off.

You can remove the Table of Contents from the export using the cog icon on the top right of the docs page to hide it. This is a user setting so it will not affect other viewers of the docs, and you can re-enable both dark theme and Table of Contents after exporting the doc.

Exporting/Printing all pages

You can use the mkdocs-print-site-plugin to build a single page view of your docs with all pages, that you can then use to export to PDF via your browser. This can be useful for auditing purposes or to share docs with someone that does not have access to Roadie.

You will need to add the plugin to your mkdocs.yml file first like so:

plugins:
  - print-site

NB: This plugin currently requires each page to have an H1 header - see currently open issue

Graphs and Diagrams

Using Mermaid Diagrams

Roadie supports two ways of displaying Mermaid diagrams via tech docs. The first way is to use Mermaid JS on build time via an extension which must first be enabled in your mkdocs.yaml:

markdown_extensions:
  - markdown_inline_mermaid

The second way is to render mermaid diagrams on runtime by using a TechDocs addon. This does not need modifications to the mkdocs.yaml by default, but the build time extension should not be present for the runtime rendering to take place.

Then you can add mermaid diagrams as follows:

```mermaid
%%{init: {'theme': 'forest'}}%%
graph LR
  A[Start] --> B{Error?};
  B -->|Yes| C[Hmm...];
  C --> D[Debug];
  D --> B;
  B ---->|No| E[Yay!];
```

Using Graphs

The Graphviz plugin can render graphs inside your TechDocs.

Add it to your mkdocs.yml file like so:

...
markdown_extensions:
  - mkdocs_graphviz
...

Add a basic graph to a docs page like so:

digraph G {
    rankdir=LR
    Earth [peripheries=2]
    Mars
    Earth -> Mars
}

See the plugin README for more info and customization options: https://gitlab.com/rod2ik/mkdocs-graphviz

Customizing Graphviz Graphs

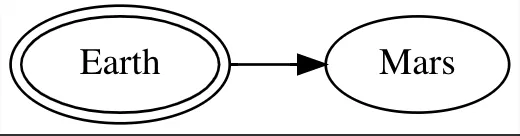

In order to customize the look of the graphs you will need to use the Graphviz attributes. Setting different values for specific set of attributes will result in graph being rendered that way. For example, let’s say we want to change background color from white to lightblue in following graph:

which could be defined in TechDocs with following code:

{% dot attack_plan.svg
    digraph G {
        rankdir=LR
        Earth [peripheries=2]
        Mars
        Earth -> Mars
    }
%}

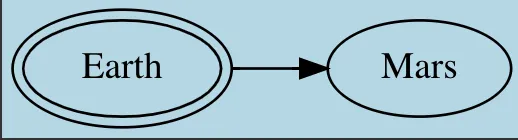

Adding ‘bgcolor’ attribute in the Graphviz code above (so its final form is):

{% dot attack_plan.svg
    digraph G {
        bgcolor="lightblue"
        rankdir=LR
        Earth [peripheries=2]
        Mars
        Earth -> Mars
    }
%}

will result in graph being rendered in lightblue color.

This way you can customize the graph adding or removing any attribute you want.

Using a Documentation Monorepo

If you need to have a place to store docs that are not related to a specific codebase or component, you may want to use a single repository to collect that meta documentation.

Nested file structures and sub-directories can be modeled using the Monorepo plugin for TechDocs.

Add to your root mkdocs.yaml file.

plugins:
  - monorepo

Reference other mkdocs.yaml files in sub-directories using the !include syntax like so:

nav:
  - Intro: 'index.md'
  - Authentication: 'authentication.md'
  - API:
    - v1: '!include ./v1/mkdocs.yml'
    - v2: '!include ./v2/mkdocs.yml'

Standalone repos for documentation not related to a codebase or component should still be modeled in Roadie with a catalog-info.yaml file. The docs repo entity can be described with the following kind and spec type:

---
apiVersion: backstage.io/v1alpha1
kind: Component
...
spec:
  type: documentation
...

Including existing markdown files

MkDocs only processes markdown files in the MkDocs directory (defaults to docs/). If you’ve existing docs which live closer to the code e.g. a README.md in the root or at some other level they can’t be referenced in the mkdocs.yaml.

It is possible to use the PyMdown snippets extension to include markdown files from outside the mkdocs docs directory in markdown files within it.

To enable this extension update your mkdocs.yaml:

markdown_extensions:
  # ... other extensions
  - pymdownx.snippets:
      check_paths: true

Then you can include snippets in your markdown files. If a snippet is the only content in a file then the content is replaced by the referenced file. For example, to include a file TEST.md at the root of our repo we could do the following:

Create a file under the docs directory e.g. docs/test.md
Add a snippet to test.md - the snippet path is relative to the mkdocs.yaml file.
```
--8<-- "TEST.md"
```

Emoji support

Emojis can be used across Tech Docs using various different approaches. The most basic is adding them via emoji code inline to your title or body.

If you don’t override the generated nav in your mkdocs.yml file you can add them to titles and they will appear in your nav.

# 😇 Emoji test

---
title: 🤫 Nav title
---

# Something else

If you need an overridden nav, you can add them in the nav titles in your mkdocs.yml file like so:

nav:
  - First page: index.md
  - 😇 Emoji test: test.md

Embedding content using iframes

You can embed most content inside Tech Docs using iframes which allows integration with most popular documentation, video and diagramming tools such as Microsoft Onedrive documents, Excel sheets and Powerpoint presentations.

NB: The default embed code for Microsoft Docx and PPT iframes includes a link inside the iframe which must be removed for the iframe to render correctly.

TechDocs uses DOMPurify to strip away extraneous or potentially harmful HTML tags from the produced content. This includes iframes to URLs that are not on the list of sanctioned targets.

You can add domain names to be allowed in iframes within the Roadie settings section. Navigate to Administration -> Settings -> Tech Docs and add domains which you are comfortable to be included as iframes into your generated tech docs.
