Backstage Backchat GenAI Plugin

Step 1 Install the frontend package

Run this in the root of your Backstage repo.

yarn add --cwd packages/app @benbravo73/backstage-plugin-backchat

Step 2 Configure the AI server URL

Create a local config file if you do not have one yet.

touch app-config.local.yaml

Add this to app-config.local.yaml.

# Mandatory: Choose one URL to use
ai_server:
  # Chatbot UI with LocalAI server
  url: "http://localhost:3001"
  # Ollama Web UI
  # url: "http://localhost:3100"
  # Text Generation Web UI
  # url: "http://localhost:7860"
  # Big AGI UI
  # url: "http://localhost:3456"

# Optional: Backchat catalog and TechDocs
catalog:
  locations:
    - type: url
      target: https://github.com/benwilcock/backstagecon-2023/blob/main/backchat-catalog.yaml
  rules:
    - allow: [Component, API, Resource, System, Domain, Location, Group, User]

Step 3 Add the Backchat route

Edit packages/app/src/App.tsx. Import the page then add a route under FlatRoutes.

// packages/app/src/App.tsx
import React from 'react';
import { BackchatPage } from '@benbravo73/backstage-plugin-backchat';
import { FlatRoutes } from '@backstage/core-app-api';
import { Route } from 'react-router-dom';

// inside your App component render
export const AppRoutes = () => (
  <FlatRoutes>
    {/* other routes */}
    <Route path="/backchat" element={<BackchatPage />} />
  </FlatRoutes>
);

If your file uses a different structure, place the Route inside the same FlatRoutes block as your other pages.

Step 4 Add Backchat to the sidebar

Edit packages/app/src/components/Root/Root.tsx. Import the icon then add a SidebarItem.

// packages/app/src/components/Root/Root.tsx
import React from 'react';
import ChatIcon from '@material-ui/icons/Chat';
import { SidebarItem, SidebarGroup } from '@backstage/core-components';

// inside the "Menu" SidebarGroup with your other items
export const Root = () => (
  <>
    {/* other layout */}
    <SidebarGroup label="Menu">
      {/* other items */}
      <SidebarItem icon={ChatIcon} to="backchat" text="Backchat AI" />
    </SidebarGroup>
  </>
);

If your app uses a different sidebar layout, add the SidebarItem in the same group as your other navigation links.

Step 5 Start the AI server stack

Use the project that provides LocalAI or Ollama or Text Gen Web UI or Big AGI UI. That project includes a docker compose file. Do the setup it needs, then bring the stack up.

docker compose up

After it starts, the common defaults are

• Chatbot UI on http://localhost:3001
• Text Generation Web UI on http://localhost:7860

Pick one URL and make sure it matches the url you set in app-config.local.yaml.

Step 6 Run Backstage

From the repo root

yarn dev

Your Backstage app serves the Backchat page at the path you added. The sidebar link Backchat AI points to it. The page embeds the AI chat UI you configured.

Backend on the legacy system

No backend plugin is required. The Backchat page loads the configured AI web UI directly in the browser.

Backend on the new backend system

No backend plugin is required. The Backchat page loads the configured AI web UI directly in the browser.

Notes on AI UI choices

• Chatbot UI with LocalAI server looks good for quick tests
• Ollama Web UI is easy to start and switch models
• Text Generation Web UI has many features

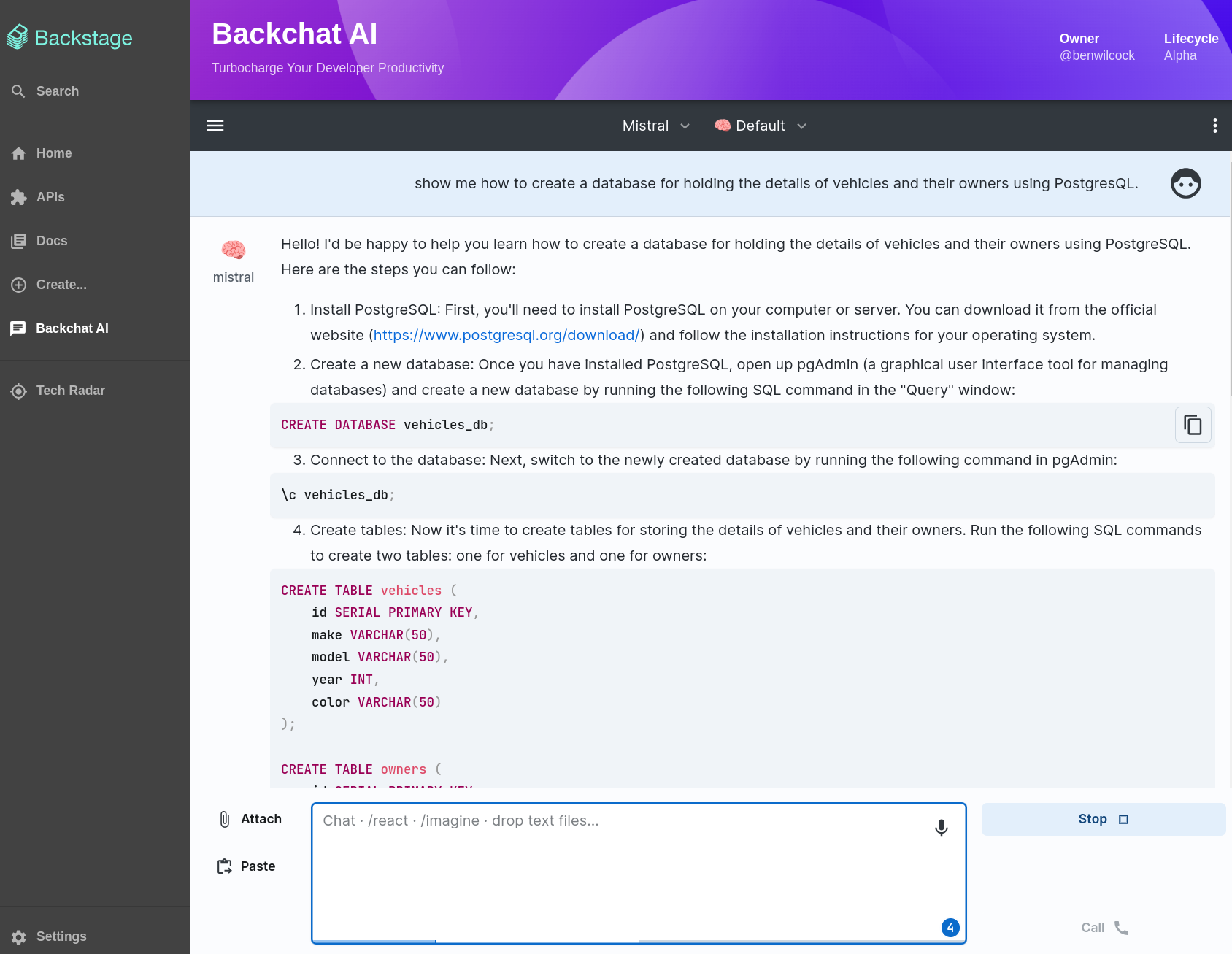

• Big AGI UI can switch between multiple servers in one place
